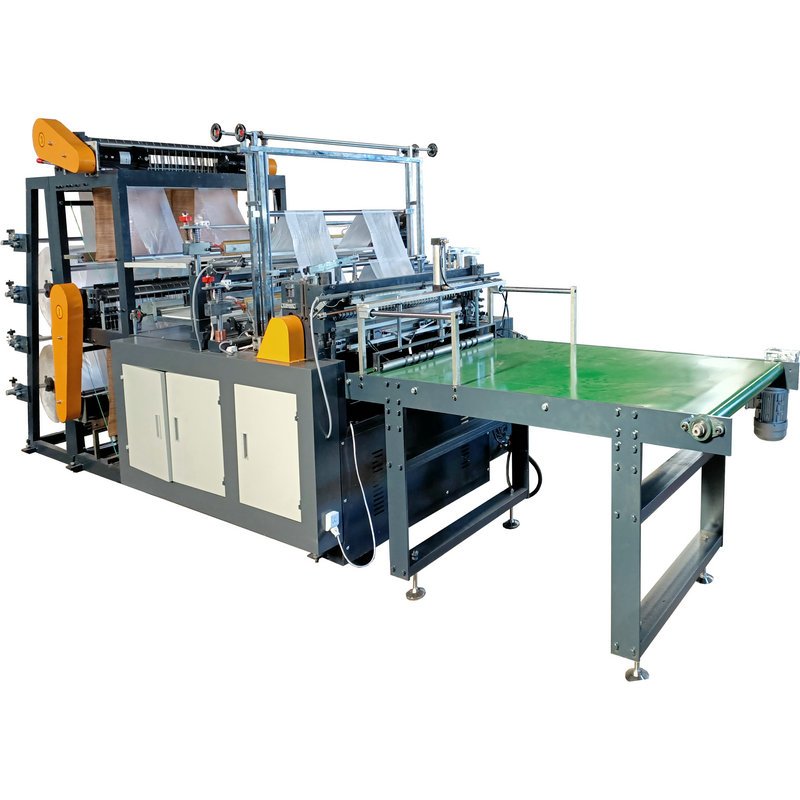

2/4 Lines Bag Making Machine/GBD

Optional Device:

Servo Motor(China Brand, Famous Brand)

Conveyor Blet

SKU: 32869918048-1-2-1 Category: Bag Making Machine

Bag making machine Hot sealing and cold cutting GBD model adopts the microcomputer for controlling the entire process from film roll to final bag, one process flow servo motor makes it easy to adjust the bag length and the production speed. Automatic film feeding, coordination free from the mechanical tension adjustment; Automatically stop when film feeding blocks or bags jam; High production efficiency to save power and time. With equip copper sealing blade makes sure the sealing line quality is excellent, and the alloy steel cold cutting blade makes the cutting end smooth.

Bag Making Machine Main Technical Variable:

Model	GBD-800	GFQ-1000	GFQ-1200
Max. Width of Bag Making(mm)	350*2	450*2	550*2
Max Length of Bag Making(mm)	400	400	600
Suitable Film Thickness(mm)	0.01mm-0.1mm
Speed of Bag-making(pc/min)	30-120*4
Weight(KG)	1000	1100	1200
External Dimension (L×W×H) mm	3400×1200×1800	3500×1500×1800	3600×1800×1800

Machine Detail:

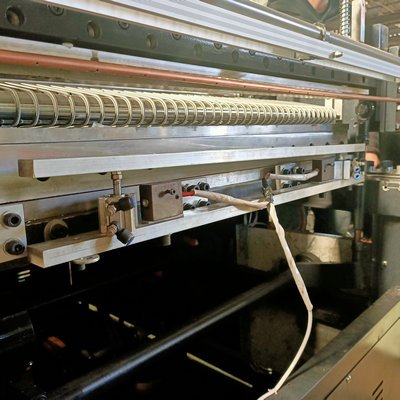

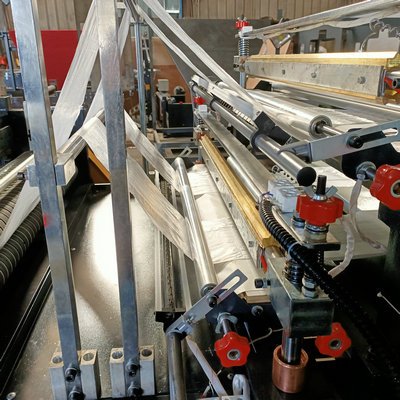

bag making machine unwinder bag making machine hot sealing and blade

GBD Hot Sealing and Cold Cutting Machine Video

https://www.ruixinmc.com/rql.html

How we know your machinery quality ?

Firstly, welcome to visit our workshop for inspecting our company.
For general model machinery, we can send enough information about the machine to make sure you well understand the quality of us
For customized machine, the design paper can be supplied and similar machine information can be supplied also.
For some model machine, sample can be made on your material sample

How to install machine in our workshop ?

Firstly, you need worker or operator who have the experience to operate similar machine
Most our machine is easily to install, simple operate can start the machine.
The whole operation manual is availabele, and the operation video is available also, and guide on line is available too.
For some complicated machine, engineer come to your place is possible(it is charged)

What about the delivery time ?

For general model of the machine, about 30 working days
For special customized machine, will be longer.

Can you tell us the whole transaction process? What do we need to do to start the transaction?

a).we agree the machinery detail request.
b).You pay 30% deposit, then we start the machinery productioin.
c).when we finished machine production, we will test the machine, the test video will be sent, or you can visit us to inspect the machine quality
d).If no question of the finished machinery, we will pack the machine.
e).Balance Paying before package sending out.
