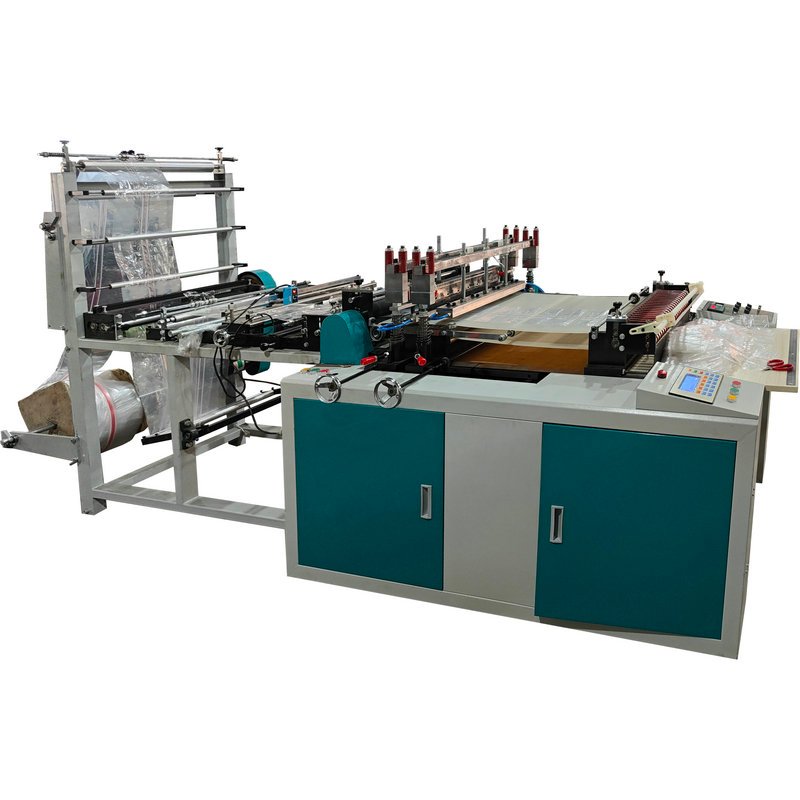

Ziplock Bag Making Machine/ZIP

Optional Device:

Servo Motor(China Brand, Famous Brand)

Double Layers Silicone Fabric

SKU: 32869918048-1-2-1-1-1-1 Category: Bag Making Machine

This ziplock bag making machine adopts photoelectric tracing, computer control, frequency conversion speed adjusting, and automatic temperature control, with the features of operating easily and sealing firmly. It is only used to seal and cut LDPE zipper bag. It is an advanced bag making machine for zipper bag production.

Main Technical Variable:

Model	ZIP-500	ZIP-600
Material	LDPE	LDPE
Capacity	50-150(Cyle/min)	50-130(Cyle/min)
Cutting width	100-500mm	120-600mm
Cutting length	120-300mm	150-400mm
Thickness of film	0.04-0.15mm	0.04-0.15mm
Film annulus diameter	Φ550×500mm	Φ550×600mm
Heater	2kw	2.5kw
Cooling	0.37kw	0.37kw
Power	3kw	3.5kw
Outline dimension(L×W×H)	3200×1100×1500mm	3300×1100×1500mm

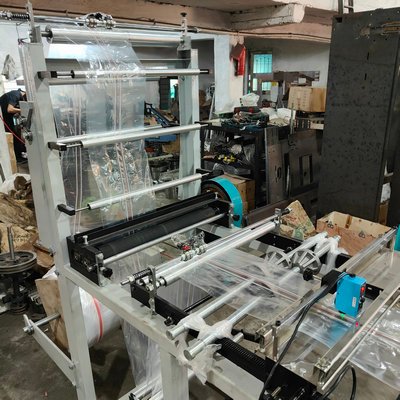

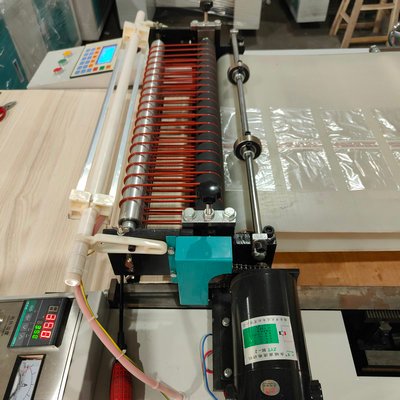

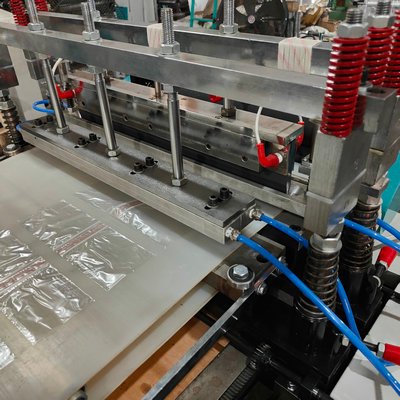

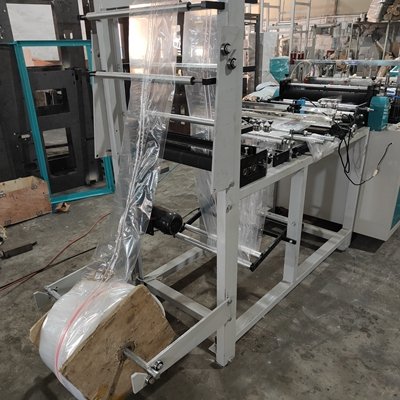

Detail Photo:

Machine Video

How we know your machinery quality ?

Firstly, welcome to visit our workshop for inspecting our company.
For general model machinery, we can send enough information about the machine to make sure you well understand the quality of us
For customized machine, the design paper can be supplied and similar machine information can be supplied also.
For some model machine, sample can be made on your material sample

How to install machine in our workshop ?

Firstly, you need worker or operator who have the experience to operate similar machine
Most our machine is easily to install, simple operate can start the machine.
The whole operation manual is availabele, and the operation video is available also, and guide on line is available too.
For some complicated machine, engineer come to your place is possible(it is charged)

What about the delivery time ?

For general model of the machine, about 30 working days
For special customized machine, will be longer.

Can you tell us the whole transaction process? What do we need to do to start the transaction?

a).we agree the machinery detail request.
b).You pay 30% deposit, then we start the machinery productioin.
c).when we finished machine production, we will test the machine, the test video will be sent, or you can visit us to inspect the machine quality
d).If no question of the finished machinery, we will pack the machine.
e).Balance Paying before package sending out.
