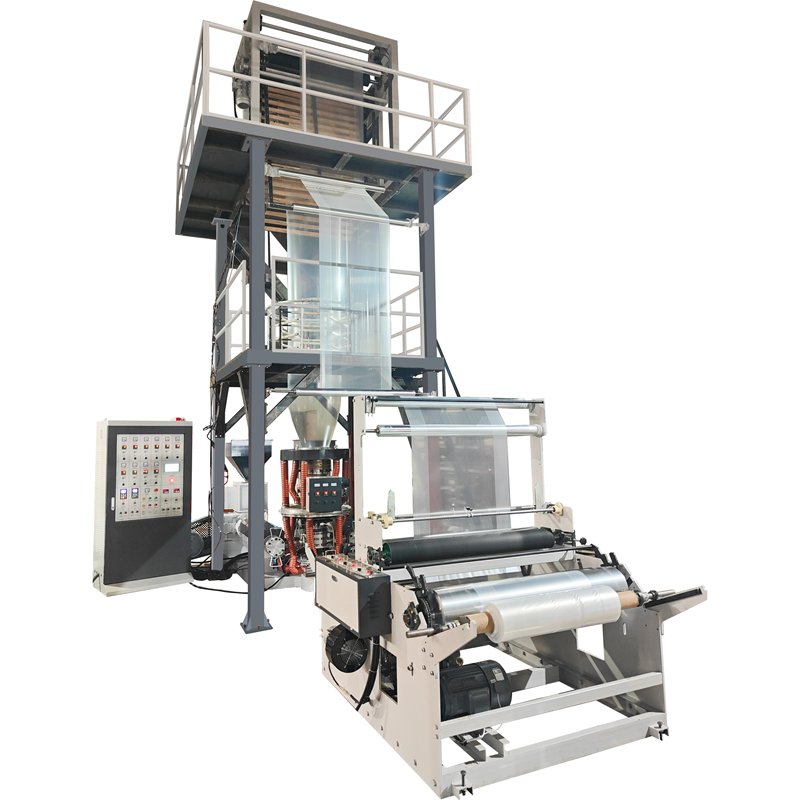

Double Layers Film Blowing Machine Description:
The double layers film blowing machine we have is specifically designed for producing two-layer films made from low density polyethylene (LDPE), high density polyethylene (HDPE), linear low density polyethylene (LLDPE), and other similar materials. These films have a wide range of applications, including packaging liquids, industrial products, garments, and textiles.
The use of a two-layer film provides enhanced protection for the packaged products. Additionally, this type of film is suitable for printing, allowing the creation of labels and other printed designs. It is versatile and commonly used for packing liquids, printed materials, export products, and industrial items.
One notable advantage of our double layer co-extrusion laminated film is its ability to extend the preservation time for liquid packaging. This means that products can be stored for longer periods without compromising their quality or freshness.
Character

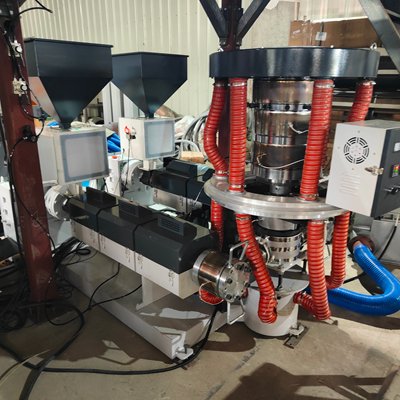

The extruder, which is the main component of the machine, is constructed using high-quality alloy steel. The cylinder and screw stem undergo precision finishing and nitrogen treatment, ensuring optimal hardness and durability. This robust construction allows for long-lasting and reliable performance.
To facilitate operation, the auxiliary machine is equipped with a platform working table. This feature makes it easier for operators to perform tasks efficiently. Additionally, a bubble stabilizing ring is included to enhance the stability of the film during the blowing process.

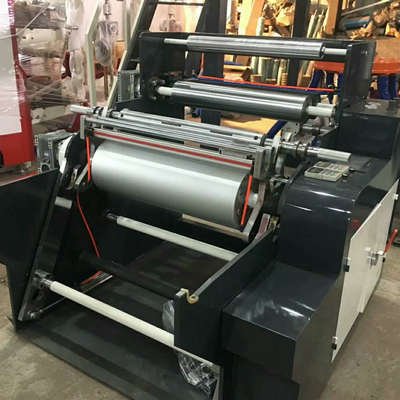

Our machine also features double rolling and double cutting mechanisms. These are controlled by a torque motor, which ensures proper tension and even rolling. This design facilitates the changing of rolls, making the process quick and hassle-free.
Transition words and phrases: Specifically, These films, Additionally, The use of a two-layer film, It is versatile, commonly used, One notable advantage, This means, The extruder, which is the main component, is constructed, This robust construction, To facilitate operation, Additionally, Our machine also features.
Blown Double Layers Film machine Video
Double Layers Film Blowing Machine Main Techincal Variable:
| Model | SJ(50*2)-1100 | SJ(55*2)-1700 | SJ(60*2)-2000 |
| Suitable Material | HDPE,LDPE,LLDPE | ||
| Screw Diameter | φ50×2 | φ55×2 | φ60×2 |
| Film Width(mm) | 600-1000 | 800-1500 | 1000-1800 |
| Film Thickness (mm) | 0.03-0.20 | 0.03-0.20 | 0.03-0.20 |
| Max Extrusion Output(kg/h) | 80 | 120 | 160 |
| Screw L/D Length | 28：1\30:1 | 28：1\30:1 | 28：1\30:1 |
| Main Motor(kw) | 15\18.5\15 | 18.5\22\18.5 | 22\30\22 |
| Take-up Motor(kw) | 1.5 | 1.5 | 2.2 |
| Outline Dimension (L×W×H)(m) |
6.5*5.5*5.5 | 7.5*5.8*7.5 | 7.8*6.4*8 |
https://www.ruixinmc.com/pe-film-blowing-machine.html
Optional Device
Manual Fast Filter Changer Corona Treater
Auto Winder Advanced Air Ring
Auto Loader or Dry Hopper
